Tesla 3 Repair and Maintenance Manual

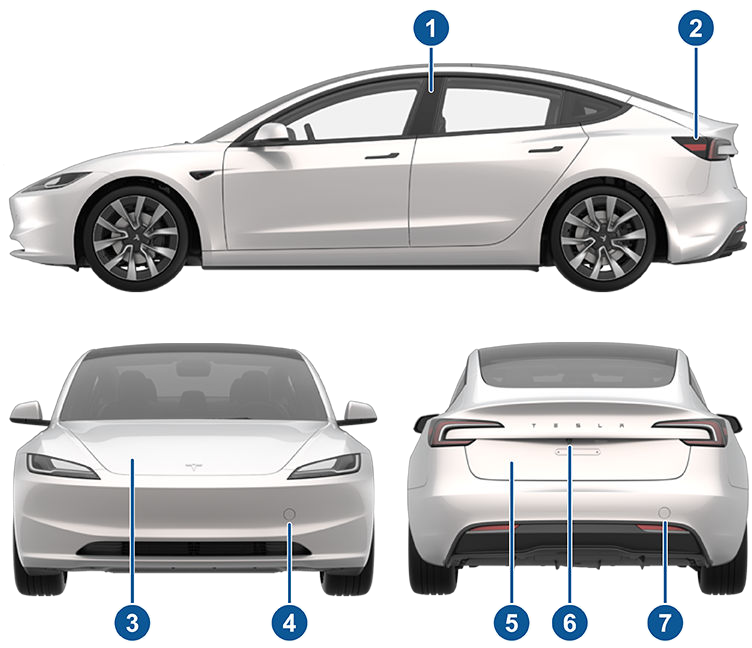

Exterior views of vehicle from side, front and rear with callouts

  1. Key card sensor (Keys on page 20)
  2. Charge port (Charging Instructions on page 178)
  3. Hood/front trunk (Front Trunk on page 31)
  4. Front tow eye cover (Instructions for Transporters on page 226)
  5. Rear trunk (Rear Trunk on page 28)
  6. Rear view camera (Rear Facing Camera(s) on page 93)
  7. Rear tow eye cover (Instructions for Transporters on page 226) For Autopilot camera locations, see Cameras on page 18.

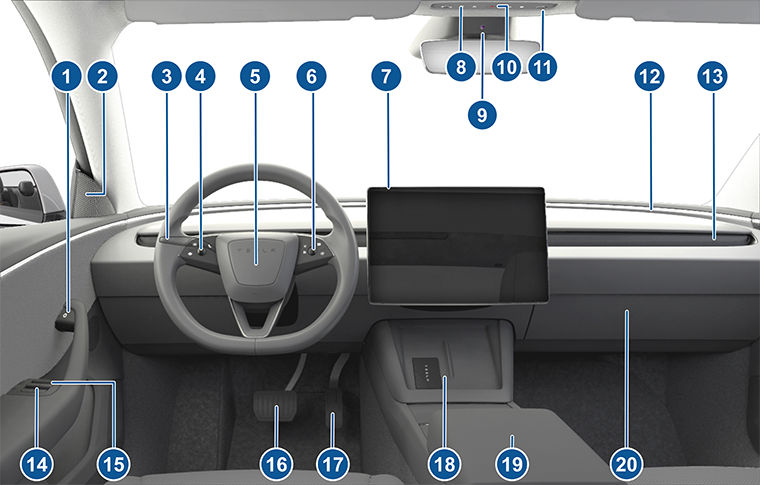

Interior view of front cabin with callouts

  1. Door open button (Opening Doors from the Interior on page 25)
  2. Blind spot warning light (Blind Spot Warning Light on page 135)
  3. Turn stalk (if equipped) (Lights on page 73)
  4. Left scroll wheel (Left Scroll Wheel (Multifunction) on page 66)
  5. Horn (Horn on page 67)
  6. Right scroll wheel (Right Scroll Wheel (Autopilot) on page 66)
  7. Touchscreen (Touchscreen on page 6)
  8. Secondary drive mode selector (P R N D) (Shift Using the Overhead Console on page 70)
  9. Cabin camera (Cabin Camera on page 142)
  10. Hazard warning flashers (Hazard Warning Flashers on page 75)
  11. Dome lights (Lights on page 73)
  12. Accent lights (if equipped)(Lights on page 73)
  13. Climate control vent (see Operating Climate Controls on page 151)
  14. Power window switches (Windows on page 27)
  15. Manual door release (Opening Doors from the Interior on page 25)
  16. Brake pedal (Braking and Stopping on page 77)
  17. Accelerator pedal (Regenerative Braking on page 78)
  18. Wireless phone charger (Wireless Phone Chargers on page 11) and key card reader (Keys on page 20)
  19. Center console (Center Console on page 33)
  20. Glovebox (Glovebox on page 33)

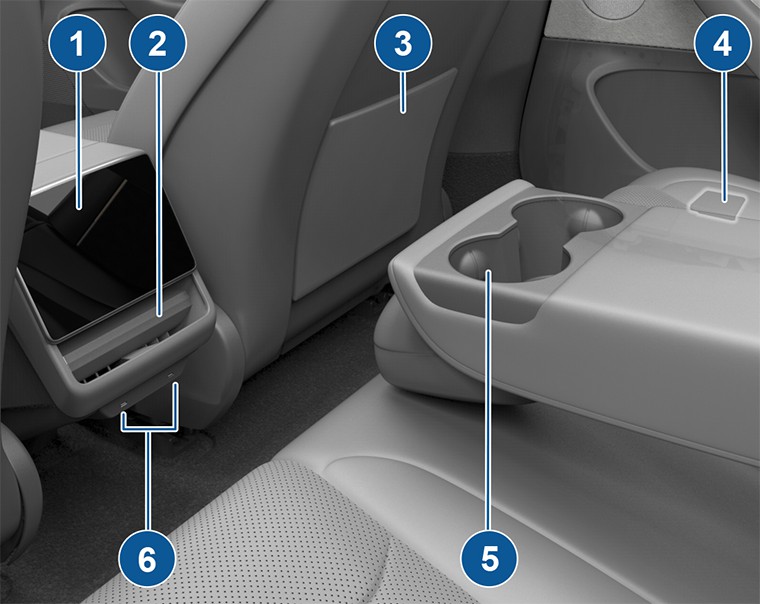

Interior view of rear cabin with callouts
